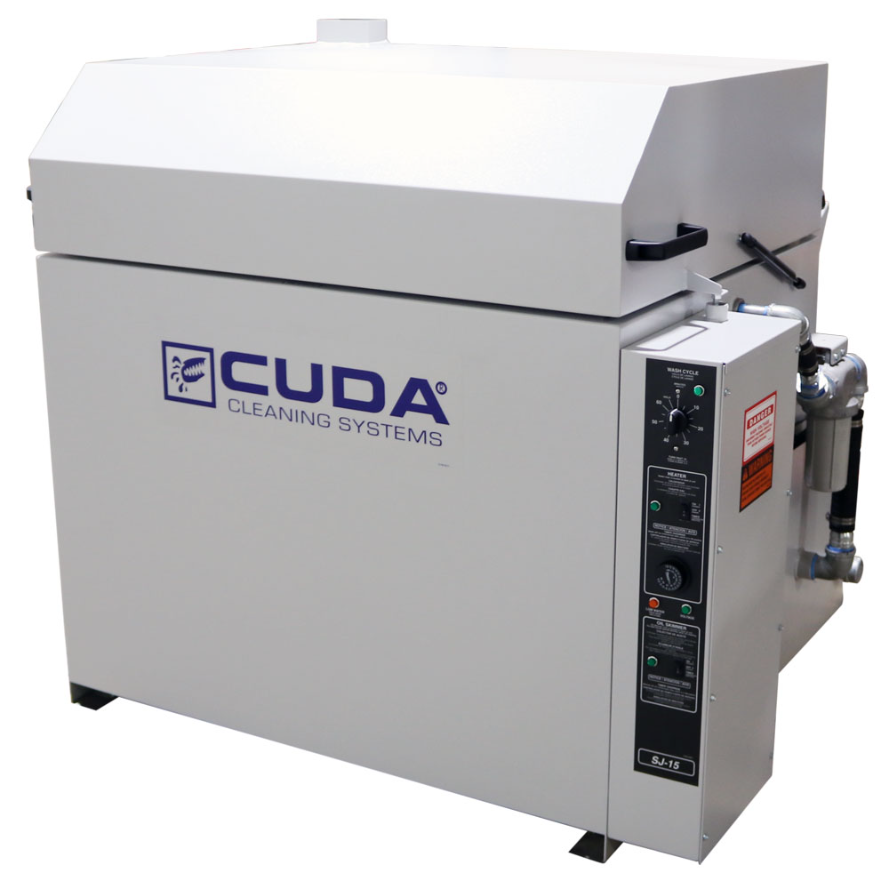

Cuda's newest top-load model. A water-propelled, motorless spray arm with 23 nozzles spins around a stationary basket to hit parts from every angle at once, giving industrial shops a true load-it-and-walk-away aqueous cleaning cycle.
SPECIFICATIONS
Technical data
| Working Height | 17.5" |
| Basket Size | 32" x 21" |
| Basket Load Capacity | 350 lbs |
| Number of Spray Nozzles | 23 |
| Sump / Tank Capacity | 90 gallons |
| Pump Motor | 3 HP - Vertical - Seal-less |
| Pump Capacity | 50 GPM - 45 PSI (37 GPM - 30 PSI spray output) |
| Voltage / Phase | 230V / 1Ph, 208V / 1Ph, 230V / 3Ph, 208V / 3Ph, 460V / 3Ph, 575V / 3Ph |
| Machine Dimensions: L x W x H | 51"L x 48"W x 49"H |
| Shipping Dimensions: L x W x H | 73"L x 60"W x 60"H |
