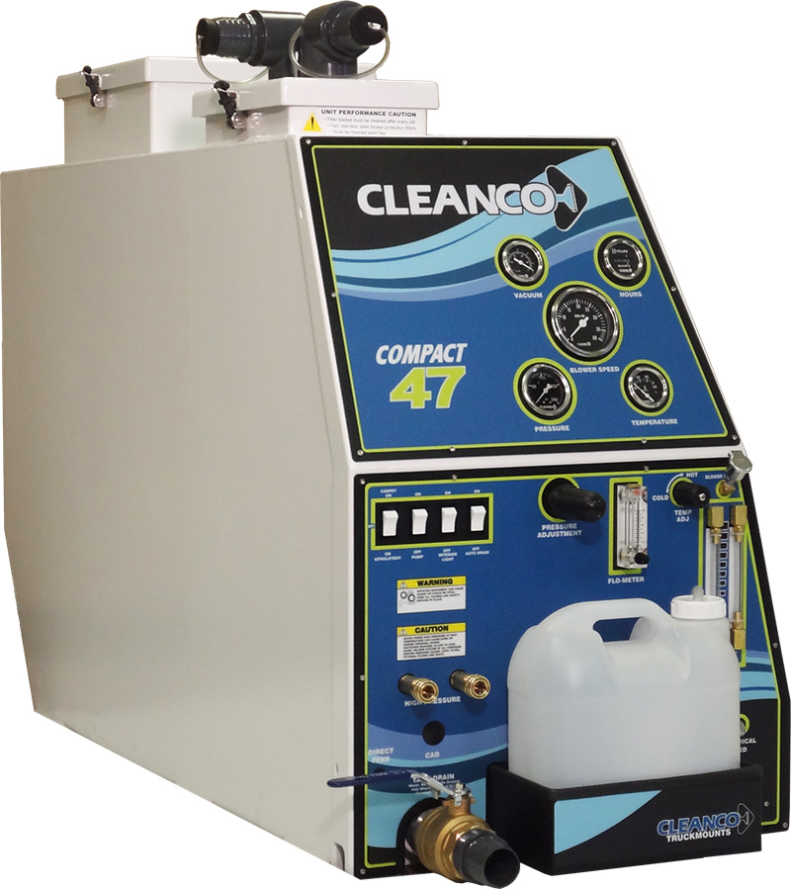

The Compact 47 is a direct drive truckmounted carpet cleaning system, powered by the host vehicle engine. Delivering high heat up to 240°F working water temperatures, 490 CFM for fast drying time, and adjustable pressure for upholstery, carpet, and hard surface cleaning. Its compact design requires only 25" of install space, leaving the rest of your cargo space available for other equipment.
SPECIFICATIONS
Technical data
| Engine | Direct drive system, powered by host vehicle engine |
| Blower | Tuthill 4007 Trilobe, 490 CFM |
| Pump | 5CP Cat Pump, clutch activated, 1200 PSI factory setting adjustable down to 50 PSI |
| Heat Method | Dual reverse flow heat exchangers, 200°F, up to 240°F with optional Heat Max P.T.I. |
| Filter System | Twin 2.5" stainless steel blower protection filters |
| Waste Tank | 100 gal powder coated 3/16" marine aluminum (120 gal optional) |
| Freshwater Tank | Optional 125 gal Aqua Reel storage tank |
| Dimensions | 58" L x 25" W x 37" H |
| Weight | 680 lbs |
| Warranty | 5 Year Extend-A-Care Warranty |
More Details and Literature at https://esteam.com/product/compact-47/
